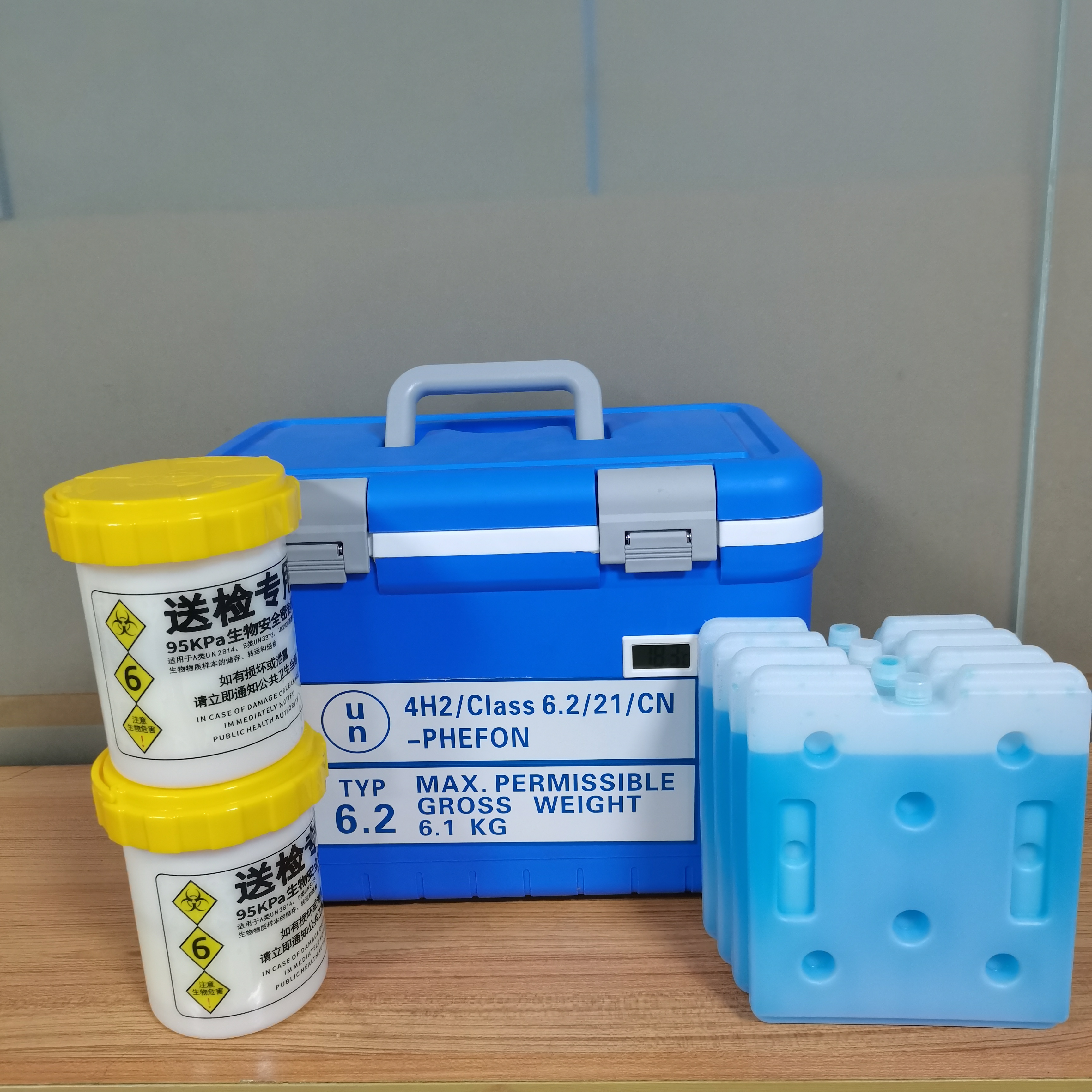

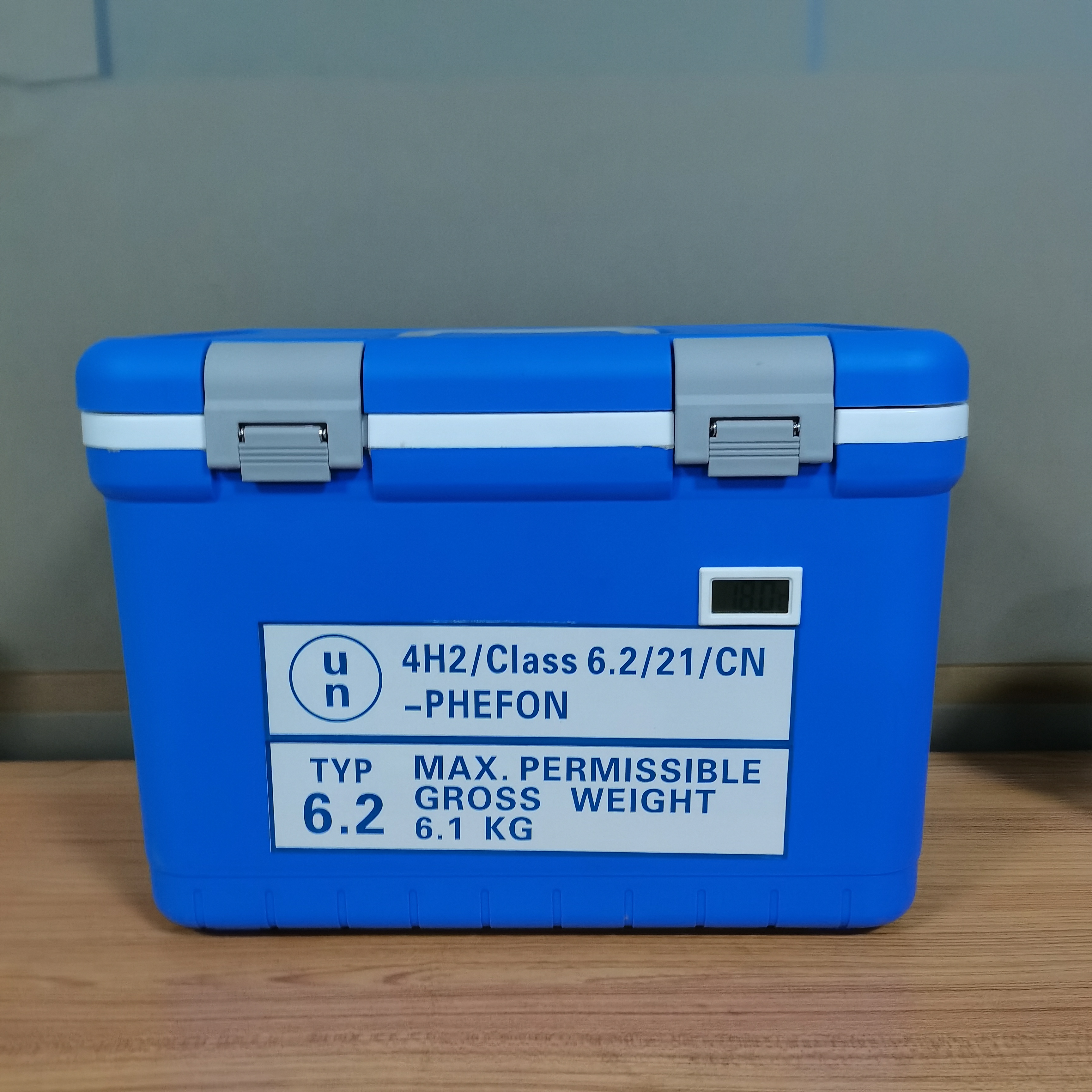

UN2814/3373/2900 Transportation Container
VR
  • Products Details

Henan Phefon Cold Chain Equipment Co.,Ltd. will come to you with special care and you can easily contact them for any information that you may need about the product. After the UN2814 Biological substance category A lab cold chain transport canister was launched, we received good feedback, and our customers believed that this type of product could meet their own needs. Over the years,UN2814 Biological substance category A lab cold chain transport canister has been widely recognized by customers who have cooperated.

Place of Origin:Henan, ChinaBrand Name:Phefon
Model Number:FS-12LMaterial:PE
Use:CANSFeature:Waterproof, insulated, Thermal

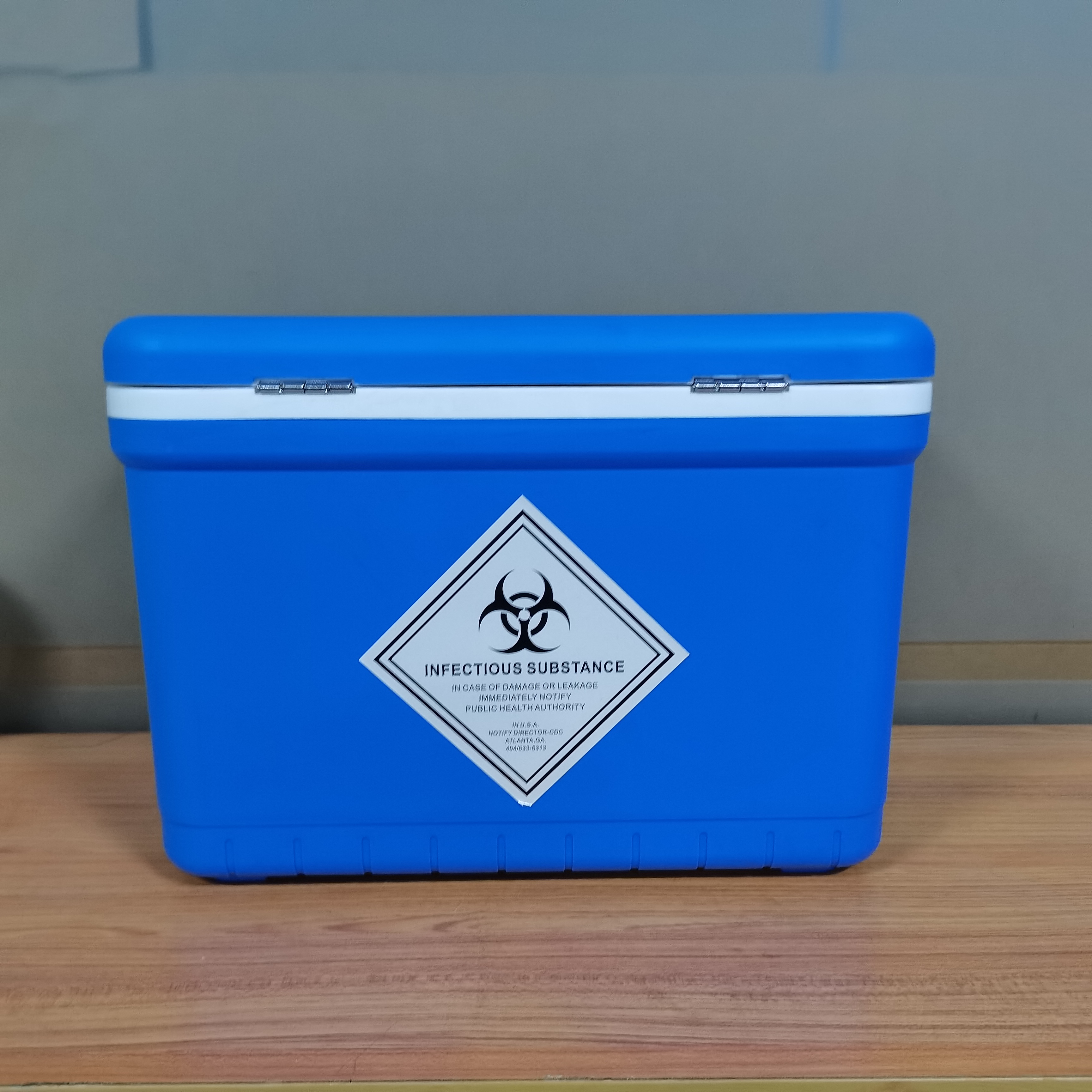

Cooler Box Color:Blue & grey handlesUsage:Infectious Substance cold chain transportation
Available Capacity of cooler:12 LRaw Material:Outer shell is PE.Internal lining is PP
Insulation layer:PU(Polyurethane) foam CFC-freeInsulation thickness:≥40mm
External Dimension of cooler:425*262*305 mmInternal Dimension of cooler:325*170*225 mm
Certificate:CE,ISO 9001,ISO 14001, ISO 45001Canister dimension:11x16 cm

Products Description
Module  No.
FS-12L
Available Caplacity
12L
External Dimension
425 *262 *308 mm
Internal Dimension
325 *170 * 225 mm
Raw Material
The outer material is PE,inner liner is PP.
Insulation Layer
Foam by CFC-free PU(Polyurethane)
Transportation Pot Components:
95Kpa Canisters size
11*16 cm(D*H)
Test tube rack
12~20 tubes
Configuration

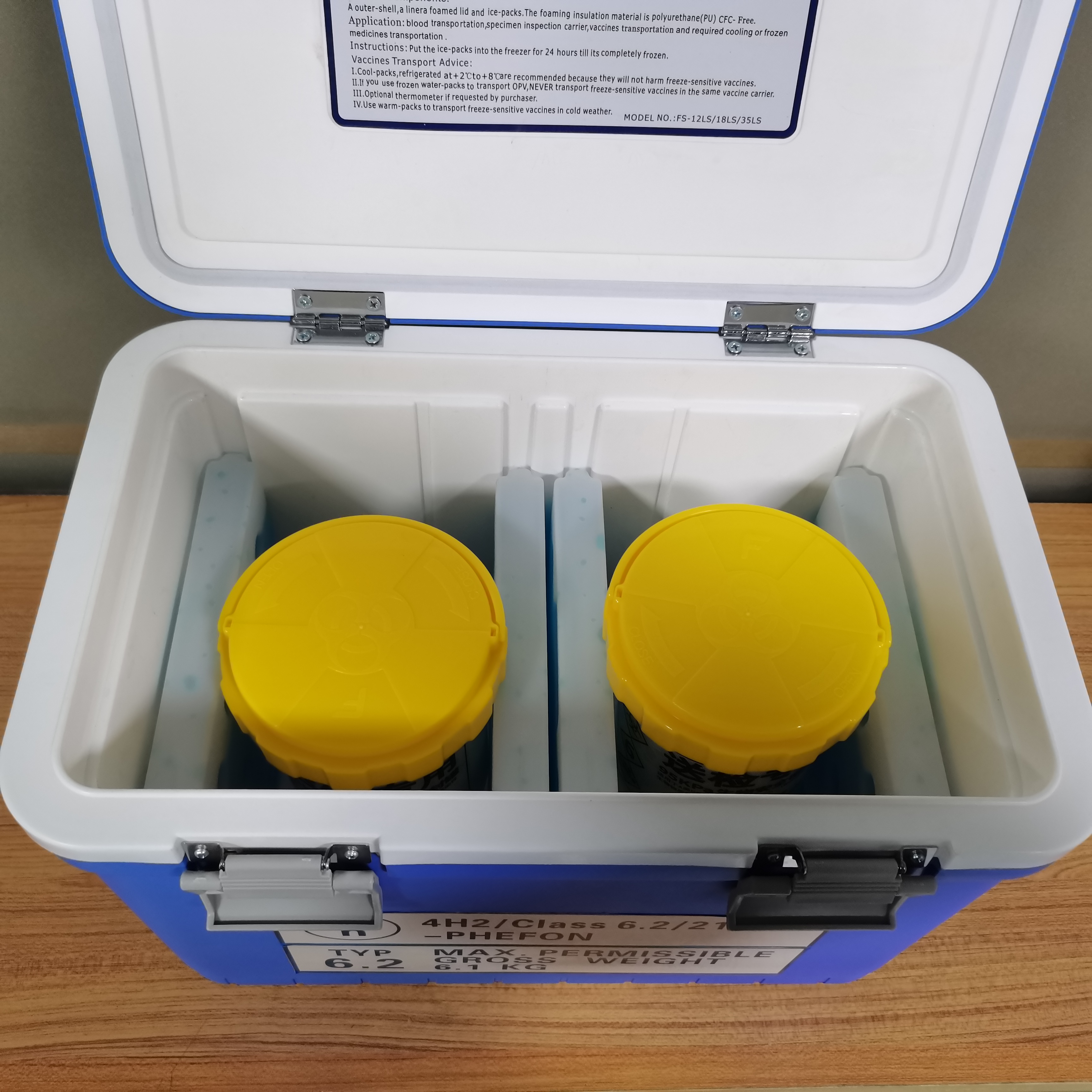

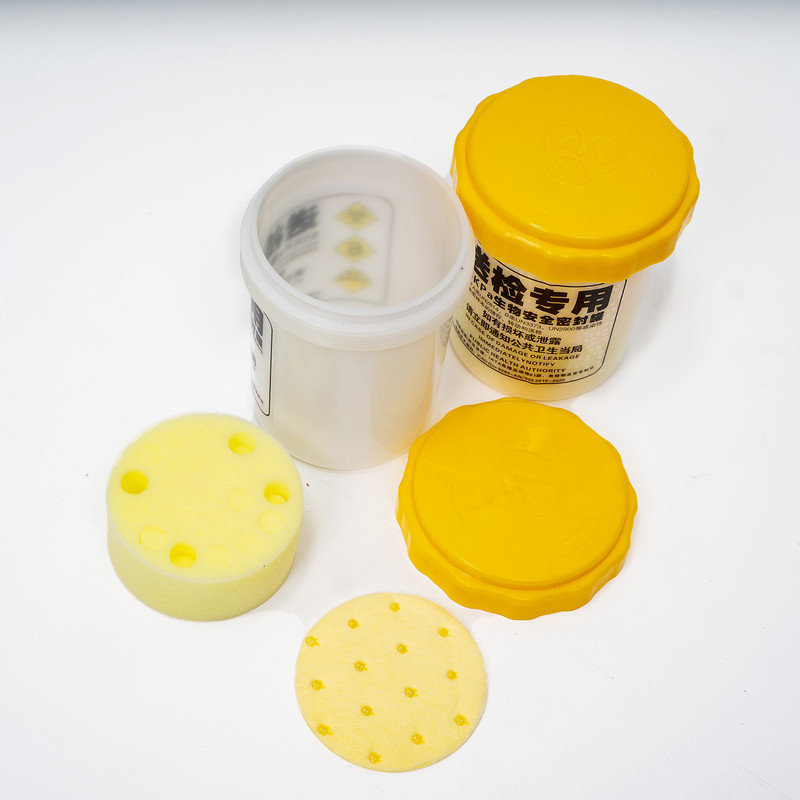

Canister+ Tube Holder+ Adsorption Cotton
Certification
1 PCS
Usage
UN2814/UN3373
Applications:
Local disease control centers, hospitals, blood stations, entry-exit inspection and quarantine bureaus, can be used with
incubators and refrigerators

Applicable specimens:
Transport UN2814/UN3373/UN2900 pathogenic viruses, strains, infectious samples.
Such as: New Corona Virus Disease 2019(COVID-19),HIV blood samples, avian influenza samples, foot-and-mouth disease samples,
plague samples, SARS samples, Ebola samples, etc.

Features:
Made of high-density white PP, the wall thickness is sturdy and durable, with a threaded cap, and a uniquely designed inner plug type sealing ring, which can provide a tight seal for watertight transportation, suitable for harsh transportation conditions, and can be reused.
Details Images

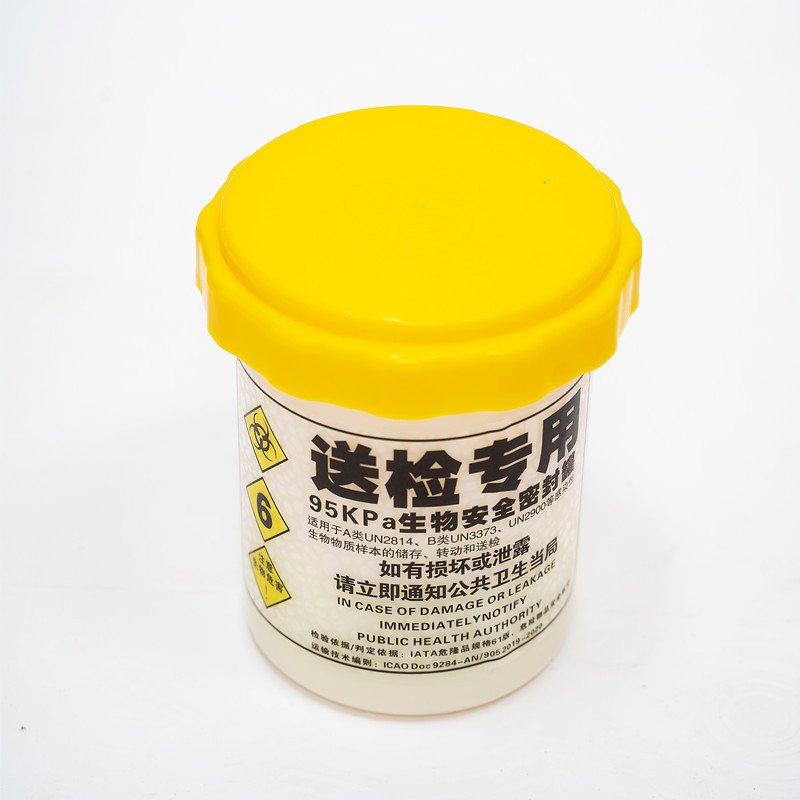

95kPa Certified Shipping Canisters:

These heavy-duty, reusable 95kPa-rated canisters are ideal secondary packaging for Biological Substance shipping. Sturdy canisters made of high-density polyethylene feature a tight o-ring seal to secure any specimen leakage should your primary container fail.
All canisters are 11mm in diameter.Canisters comply with DOT and IATA regulations as a secondary container for the transport of blood tubes, urine vials, and other Biological Substances.
For International transport of specimens, these canisters can be used with primary containers, absorbent material and a rigid outer container (typically a box) to conform to IATA Packing Instruction 650 for Biological Substances Category A/ B.
The canister is thick walled and durable,holds up to 12-20 tubes (depending on the volume of tubes being transported) and features an o-ring gasket that creates a tight seal for watertight transport. The construction of this canister is ideal for harsh transport conditions including dry ice shipments of frozen Biological Specimens inside insulated coolers.Replacement o-rings are available separately for refurbishing.

Reliability & Authority:

The manufacturer has passed CE, ISO9001,ISO14001,ISO45001 system certifications.
The product meet the PI620 packaging requirements for A infectious substances, and can be used to transport UN2814/UN2900/UN3373 infectious substances.

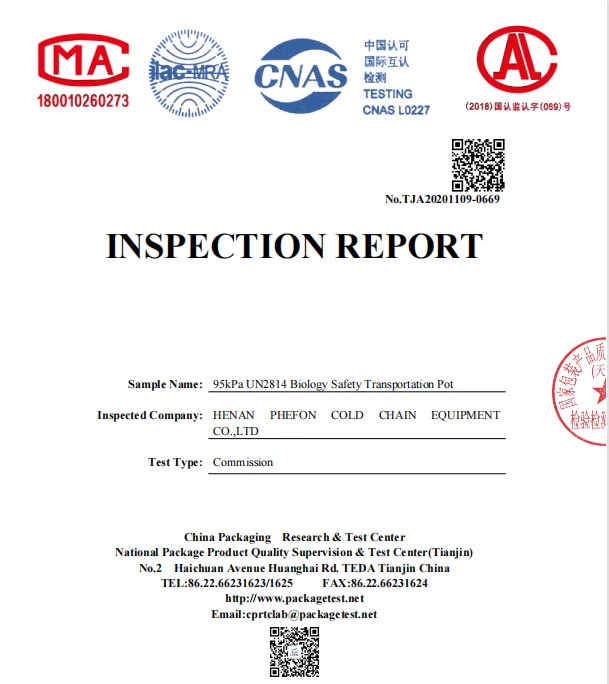

The test report is issued by the National Packaging Research and Test Center complies with IATA Dangerous Goods Regulations rule 61.

Company Profile

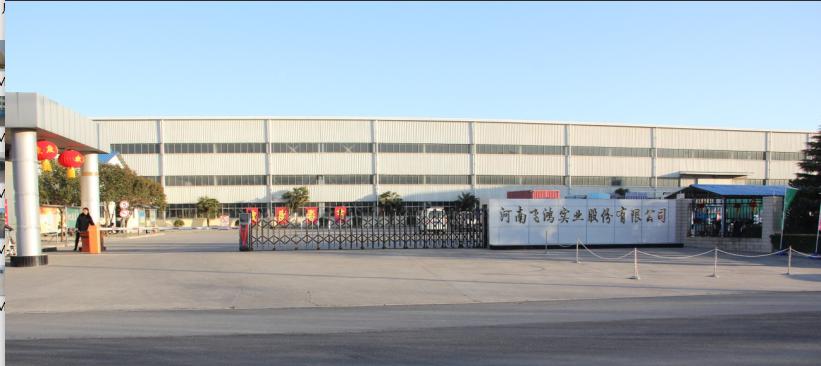

Henan Phefon Cold Chain Equipment Co.,Ltd. is the professional manufacturer of cooler box,PCM Ice Pack,Vaccine carrier etc. Located in National (Xinxiang) Chemical & Physical power industry zone. Our company is committed to creating safety,thermal
insulation,healthy,convenient and environmental protection products ,and to provide customized cold chain transportation solutions for customers.
Till now,Phefon cold chain has provided professional cold chain distribution solutions for lots of companies in the different fields,such as pharmaceutical groups,biological products companies,third-party medicine enterprises and fresh e-business companies all over the world.
The FF series products is the first one that approved by the W.H.O in domestic.We maintained a long term communication with the WHO experts on the technical and quality of the products.Also we communicate and cooperate with the international organizations that dedicate to the international medical development,like Gavi,Unicef,PATH,The Gates Foundation and the Clinton Organization.
Quality Control
Why Choose Us
Henan Phefon Cold Chain Equipment Co.,Ltd.
Until now, Phefon cold chain has provided professional cold chain distribution solutions for lots of companies in the different
fields,such as pharmaceutical groups, biological products companies, third-party medicine enterprises and fresh e-business
companies all over the world.

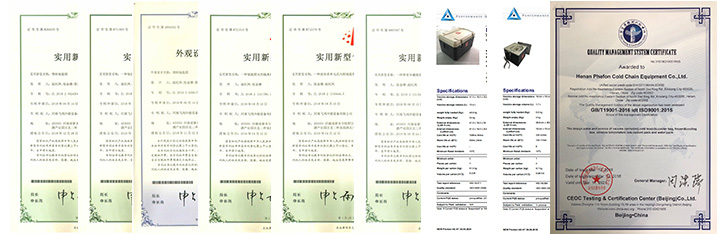

Certifications
We have passed passed ISO 001,ISO 4001,ISO 45001 system certifications.And the FF series products has been approved by W.H.O.
So we will provide you the best quality products with best price.
FAQ
Q1.What is your MOQ?
Usually is 100pcs. lower quantity trial order is also available.
Q2.Can I get samples?
Yes,of course.The cost of samples is paid by customers,and the sample cost will refund when you place formal order.So if you need the sample,pls contact with us.
Q3.How long is the sample lead time?
About 3-5 working days after confirming the sample details.
Q4.How long is the delivery time?
Depend on the quantity of the order,usually about 20 working days.
Q5. What format of the file do you need if I want my own design?
We have our own designer in house. So you can provide JPG, AI, cdr or PDF, etc. We will make 3D drawing for mold or printing screen for your final confirmation based on technique.
Q6. How many colors are available?
Kindly tell us the color you need . We will match the colors according to the quantity of the order.. Or we will recommend some popular colors to you.
